Universal Sib Tsoo Tshuab

Lub tshuab sib tsoo Universal siv cov kev txheeb ze ntawm cov hniav uas txav tau thiab cov hniav uas ruaj khov los tsoo cov khoom los ntawm kev cuam tshuam, kev sib txhuam, shearing ntawm toothed disc, thiab kev cuam tshuam ntawm cov ntaub ntawv ntawm ib leeg. Lub fineness ntawm cov khoom crushing tuaj yeem hloov kho los ntawm qhov pore loj ntawm lub vijtsam. Tag nrho cov hmoov grinder tshuab yog tsim raws li GMP tus qauv thiab ua los ntawm stainless hlau. Cov qauv ntawm cov hmoov grinder tshuab yog yooj yim, tsawg zog noj thiab yooj yim los ntxuav. Cov hmoov grinder tshuab yog cov cuab yeej zoo tshaj plaws crushing tam sim no.

Nta

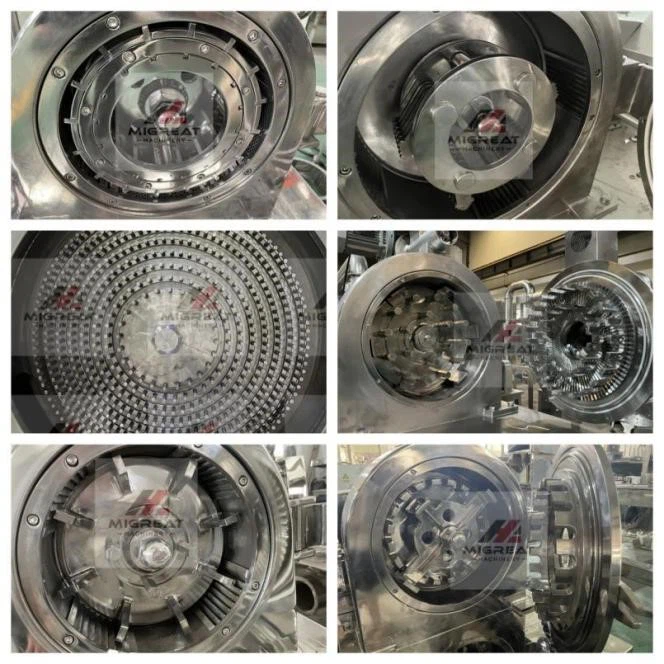

Cutter taub hau high-speed rotation shear sib tsoo. Muaj ib qho screen sab nraum lub taub hau cutter rau pom. Tom qab crushing, hmoov dhau los ntawm qhov screen thiab nkag mus rau qhov chaw nres nkoj tawm.

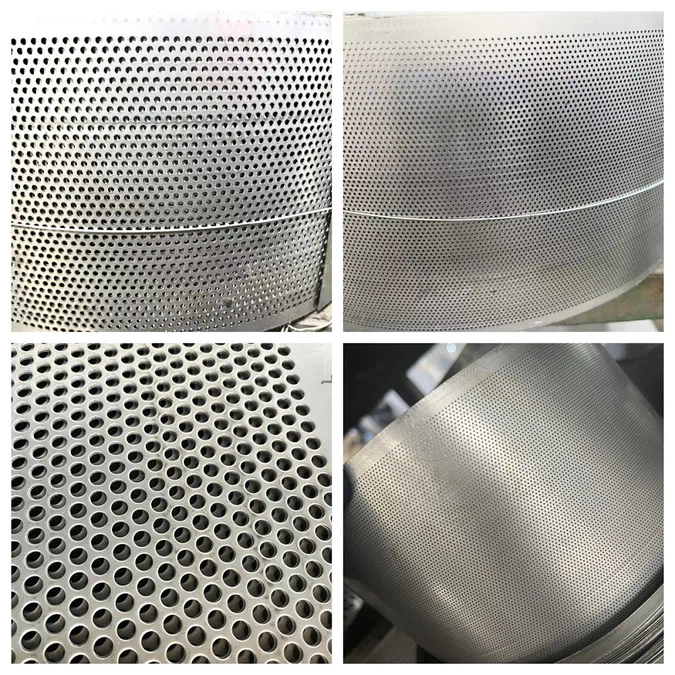

Stainless hlau npo: Hloov cov mesh loj, ces hloov cov hmoov loj.Cov tshuaj ntsuam hauv lub tshuab yog muaj nrog cov apertures nram qab no: {{0}}.4, 0.6, {{6 }}.7, 0.8, 1, 1.5, 2, 2.5 hli. Pin zeb rau ntsim, mov, noob, txiv ntseej crushing rau 20-120 mesh.

Txoj Cai Ua Haujlwm

Lub tshuab sib tsoo Universal siv cov kev sib tw ceev ceev ntawm cov hniav txhuam hniav thiab cov hniav ruaj khov rau kev cuam tshuam thiab tsoo cov khoom siv raw. Qhov sib txawv me me ntawm granules tuaj yeem tau los ntawm kev hloov pauv qhov screen sib txawv. Lub tshuab tag nrho yog tsim los ntawm GMP tus qauv thiab yog ua los ntawm stainless hlau. Lub tshuab muaj qhov zoo ntawm cov qauv yooj yim, kev siv hluav taws xob tsawg, kev tu yooj yim thiab yog cov khoom siv crushing zoo tagnrho.

Qauv	WF-20B	WF-30B	WF-40B	WF-50B	WF-60B	WF-80B
Peev xwm (kg / h)	50-150	80-300	100-400	150-500	200-600	30-1000
Feed loj (mm)	Tsawg dua los yog sib npaug li 10	Tsawg dua los yog sib npaug li 15	Tsawg dua los yog sib npaug li 15	Tsawg dua los yog sib npaug li 15	Tsawg dua los yog sib npaug li 15	Tsawg dua los yog sib npaug li 15
Crush loj (mesh)	20-120	20-120	20-120	20-120	20-120	20-120
Sib Tsoo Tsav (kw)	4	5.5	7.5	11	22	37
Main ceev (rpm)	4500	4300	3500	3000	3000	3000
Qhov ntev *(L W * H mm)**	600×550×1250	750×600×1450	8507001600	9008801850	95010001850	240011002000
Qhov hnyav (kg)	200	300	450	550	750	1500
