Ginger Crushing Machine

ginger crushing machine (2)(001)

ginger crushing machine (3)(001)

ginger crushing machine (4)(001)

ginger crushing machine (5)(001)

Ginger Crushing Tshuab

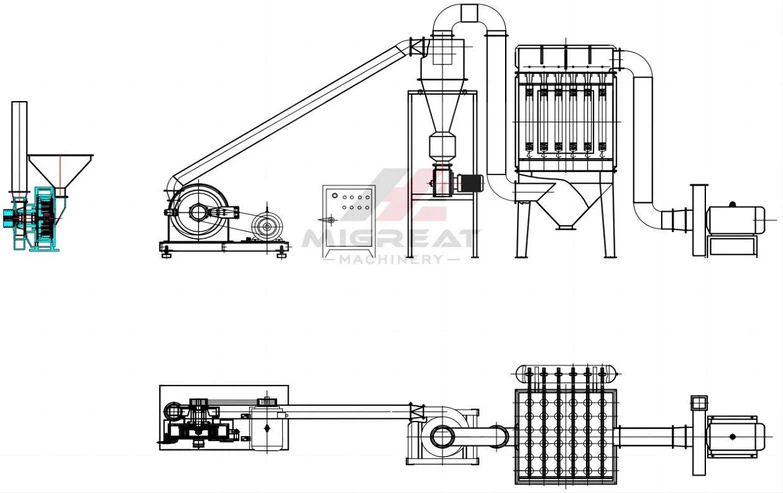

Qhov no Ginger crushing tshuab yog tsim los ntawm crusher, cyclone separator, mem tes dustevacuator box thiab blower kiv cua thiab lwm yam.
Los ntawm txoj kev sib txheeb ntawm kev txav mus los ntawm qhov hloov tau yooj yim thiab ruaj khov fluted discs, cov khoom yog crushed los ntawm kev cuam tshuam thiab kev sib txhuam ntawm cov hniav thiab cuam tshuam ntawm cov khoom. Cov khoom crushed ntws mus rau hauv lub cyclone separator los ntawm lub gravitation ntawm blower thiab rotating centrifugal quab yuam, ces tawm los ntawm lub rooj vag blower. Plua plav tuaj rau hauv lub pulse plua plav evacuator lub thawv, lim thiab rov siv dua los ntawm lub lim lub tog raj kheej. Lub crushing loj tuaj yeem hloov kho los ntawm qhov screen.

Xa kev nug

Lub ntsiab nta:

1. Kev sib hloov sib tsoo cov ntsiab lus ua rau nws haum rau feem ntau ntawm cov khoom muag muag rau nruab nrab-nyuaj sib tsoo.

2. GMP thiab zaub mov qib tsim

3. Muaj zog cua txaus tsim los ntawm turbo rotor ua rau nws haum rau kev sib tsoo fibered, tsis tshua muaj roj thiab cov ntaub ntawv kub.

4. Cov zis loj yog adjustable los ntawm kev hloov lim sieve

5. Screw feeder tuaj yeem nruab rau kev tswj tus nqi pub mis kom raug

6. Cov khoom sib txawv ntawm cov khoom siv plua plav tuaj yeem tsim los tsim kev ua haujlwm tsis muaj plua plav

7. Robust ib-thooj tshuab nrog hinged qhov rooj muab kev nkag tau zoo heev rau kev ceev thiab yooj yim tu thiab tu.

Txoj Cai Ua Haujlwm:

Nws ua rau kev siv lub siab ceev txheeb ze txav ntawm lub txav txav tau txav tau thiab qhov ruaj khov fluted disc los tsoo cov ntaub ntawv los ntawm cov txiaj ntsig zoo ntawm kev tawm tsam thiab kev sib txhuam ntawm cov fluted disc nrog rau kev sib nrig sib tawm tsam ntawm cov ntaub ntawv.Vim nws nta ib Cov qauv yooj yim, ruaj khov thiab ua haujlwm ruaj khov thiab zoo crushing nyhuv, cov crushed matterials yuav raug tso tawm ncaj qha apertures.Band, tag nrho cov tshuab yog ua los ntawm stainless hlau.Theinner nto ntawm lub enclosure yuav du los ntawm kev ua, yog li hloov cov hmoov residual phenomenon dus rau. Cov ntxhib sab hauv ntawm cov qauv dhau los.Vim li ntawd, kev tsim cov nplej, txuj lom, khoom noj khoom haus thiab tshuaj lom neeg tuaj yeem ua tau raws li lub xeev tus qauv thiab GMP cov cai.

Qauv	MXG-400	MXG-500	MXG-600	MXG-800
Peev xwm (kg / h)	100-400	20-500	300-600	400-800
Feed loj (mm)	Tsawg dua los yog sib npaug li 10	Tsawg dua los yog sib npaug li 15	Tsawg dua los yog sib npaug li 15	Tsawg dua los yog sib npaug li 15
Crush loj (mesh)	20-120	20-120	20-120	20-120
Sib Tsoo Tsav (kw)	11	15	22	37
Tshem tawm lub zog (kw)	0.75	0.75	0.75	1.5
Ntxuam motor (kw)	4	11	15	30
Main ceev (rpm)	4500	4300	3500	3000
Qhov ntev *(L W * H mm)**	5000×1000×2700	5500×1200×2800	650014002900	750016003500
Qhov hnyav (kg)	900	1200	1500	2000

Cim npe nrov: Ginger Crushing Tshuab, Tuam Tshoj Ginger Crushing Tshuab manufacturers, lwm tus neeg
