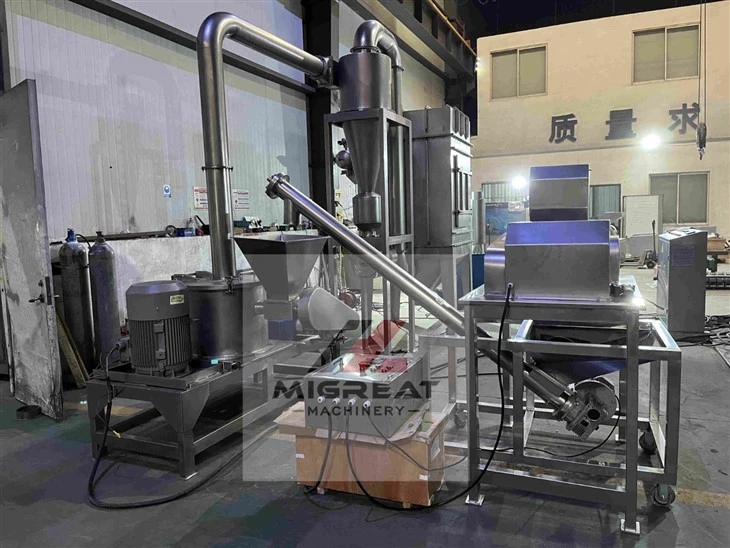

cinnamon grinder electric (1)(001)

cinnamon grinder electric (2)(001)

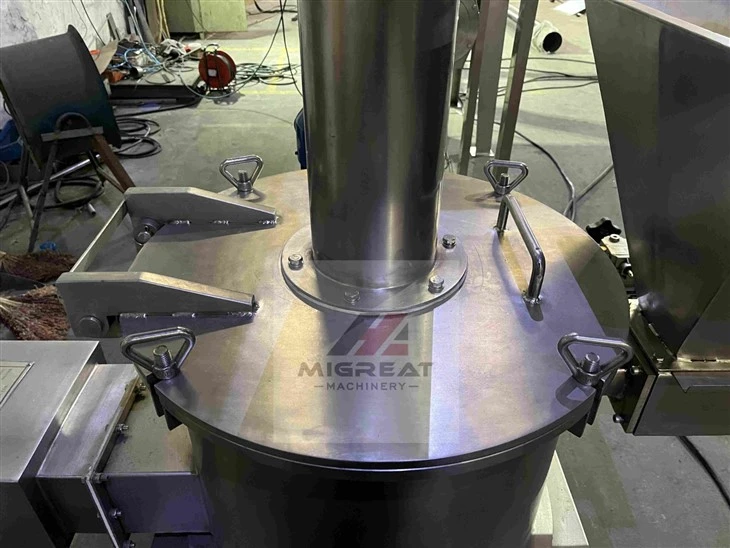

cinnamon grinder electric (3)(001)

cinnamon grinder electric (5)(001)

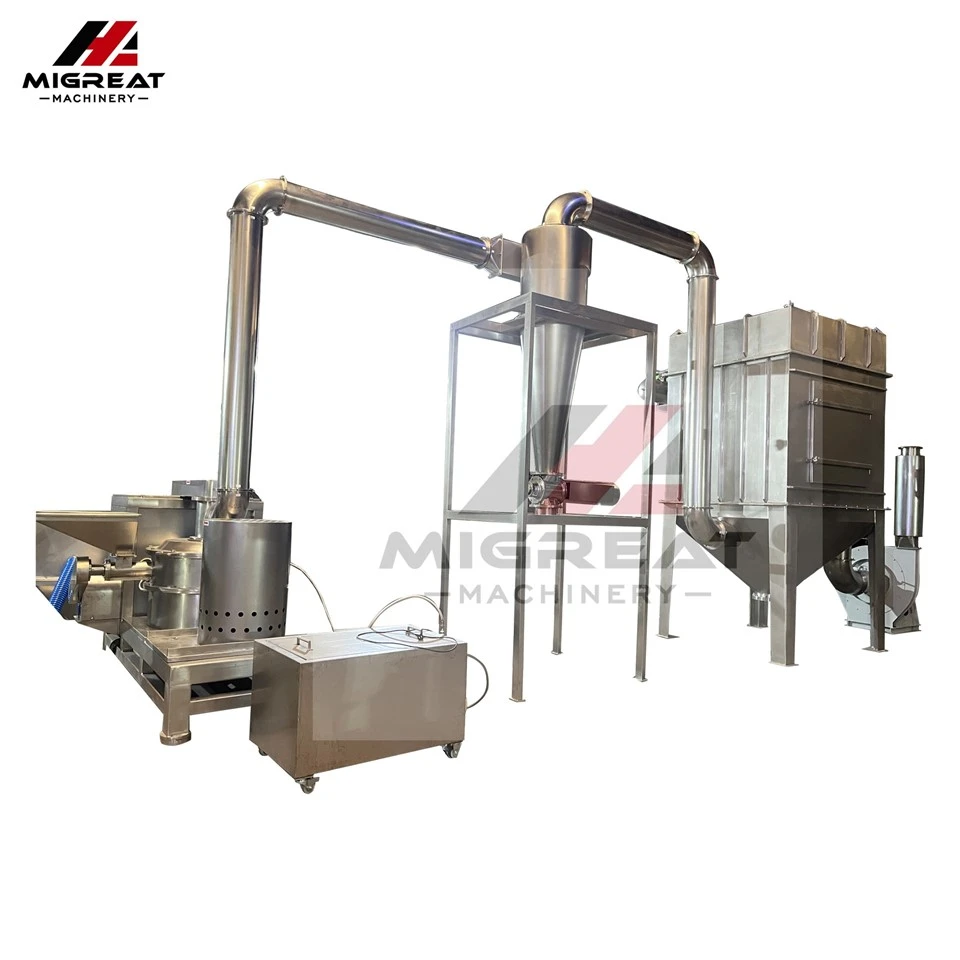

Cinnamon Grinder Electric

Cinnamon superfine sib tsoo tshuab acm zeb nrog hlau nplaum hlau cais yog tsim ntawm lub tshuab tseem ceeb, lub tshuab pabcuam, thiab lub thawv hluav taws xob.
Tshuab acm zeb nrog hlau nplaum hlau separator muaj cov yam ntxwv ntawm kev xaiv cua, tsis muaj sieve lossis net, thiab txawm tias granularity ntawm cov khoom ua tiav. Cov txheej txheem tsim tawm mus tas li thiab lub tshuab tuaj yeem ua haujlwm rau kev zom cov tshuaj, khoom noj khoom haus, tshuaj pleev ib ce, yas, dyestuff, resin, nplej, thiab lwm yam rau 80-320mesh.
Tshuab cm zeb nrog hlau nplaum hlau separator muaj xws li kev ua yeeb yam xws li winnowing, screen lossis mesh dawb, tsis tu ncua loj thiab ua haujlwm tas mus li, thiab tau mus txog qib siab thoob ntiaj teb. Yuav tsum tau sib tsoo loj tuaj yeem pom tau los ntawm kev kho cov kauj ruam kis tau tus mob los hloov qhov kev ncua deb ntawm cov kauj ruam thiab cov kauj ruam.
Nruab nrog lub tshuab hluav taws xob sib cais thiab cov khoom sib sau ua ke, yog li tsis muaj hmoov thaum lub sijhawm tsim khoom. Lub hnab ntim plua plav tuaj yeem khaws cov hmoov zoo hauv huab cua tam sim no kom ua tau raws li qhov yuav tsum tau ua kom huv thiab tiv thaiv ib puag ncig hauv cov pa paug pov tseg. Cov hmoov kawg uas tau sau los ntawm lub hnab ntim plua plav tuaj yeem siv tau zoo. Yog li cov khoom poob yog txo.

Xa kev nug

Qauv	WFJ-15	WFJ-20	WFJ-30	WFJ-60	WFJ-80	WFJ-100
Peev xwm (kg / h)	10-50	50-150	100-300	200-500	300-600	400-800
Feed loj (mm)	Tsawg dua los yog sib npaug li 6	Tsawg dua los yog sib npaug li 10	Tsawg dua los yog sib npaug li 12	Tsawg dua los yog sib npaug li 15	Tsawg dua los yog sib npaug li 15	Tsawg dua los yog sib npaug li 20
Crush loj (mesh)	80-400	80-400	80-800	80-800	80-800	80-800
Tag nrho lub cev muaj zog (kw)	20	29	46	76	95	124
Main ceev (rpm)	4000	4000	3800	3200	2800	2000
Qhov ntev *(L W * H mm)**	1400×1300×2000	6000×1250×2900	7100×1450×3200	8000x1800x4200	9000x1900x4300	10000x2000x4500
Qhov hnyav (kg)	600	1200	1900	2500	2800	3200

Txoj haujlwm ua haujlwm:

Centrifugal cuam tshuam tus pin zeb yog lub compact, kev kub ceev cuam tshuam zeb muaj peev xwm txo qhov loj me tshwj xeeb uas tsim los rau kev siv tshuaj thiab zaub mov.

Cov khoom yog pub rau hauv lub sib tsoo chamber ntawm lub hauv paus inlet ntawm qhov tawm tsam nyob ruaj ruaj disc los ntawm lub ntiajteb txawj nqus los yog ntsia hlau feeder. Kev sib hloov ceev ceev ntawm sab hauv disc tsim lub zog centrifugal uas ua rau cov khoom loj txav ntawm qhov chaw mus rau qhov chaw ntawm cov discs ntawm kev kub ceev. Raws li cov ntaub ntawv dhau los ntawm ib txoj hauv kev ntawm intermeshing kab ntawm rotating thiab nyob ruaj ruaj pins, kev sib tsoo yog ua los ntawm muaj zog cuam tshuam thiab shearing ntawm cov pins. Lub centrifugal quab yuam los yog huab cua kwj generated los ntawm cua ntsawj ntshab ntxuam yuam cov khoom mus los ntawm ib tug filtering sieve uas nyob ib ncig ntawm lub sib tsoo chamber kom tau raws li qhov yuav tsum tau particle loj. Qhov sib txawv particle loj yog txiav txim los ntawm qhov ceev, tus naj npawb, hom pins thiab qhov loj ntawm lub sieve.

Centrifugal cuam tshuam tus pin zeb tau nquag siv rau ntxhib kom zoo sib tsoo ntawm cov mos mus rau nruab nrab nyuaj, nkig thiab crystalline cov ntaub ntawv hauv cov khoom noj thiab tshuaj lom neeg kev lag luam.
